سیستم تولید همزمان برق و حرارت ۵۰ کیلووات آلمانی- شرکت پارس رایزن- 50 kW CHP combined head and power

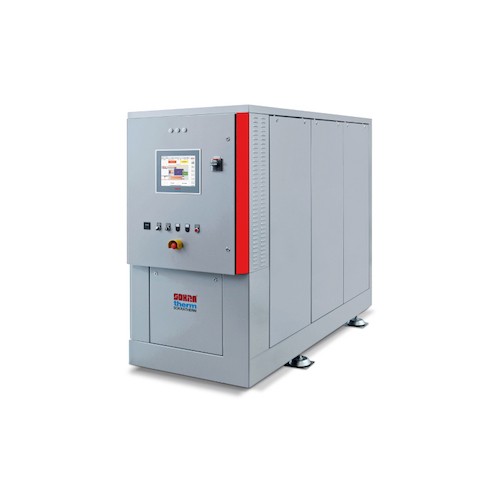

Specification:

CHP unit type: GG 50
Engine type: MAN

Power data:

Electrical [kW]: 50
Thermal [kW]: 92
Gas input [kW Hi]: 146

Efficiency Rate:

Electrical [%]: 34.2
Thermal [%]: 63
Total [%]: 97.2
Power to heat ratio: 0.53

Servicing:

Service interval [hours of operation]: 1500
General overhaul [h]: 60000

Dimensions:

Length [mm]: 2200
Width [mm]: 900
Height [mm]: 1830

Operating weight [kg]: 1940
Noise level [dB(A) in 1m]: 62

سیستم های تولید برق و حرار ت همزمان سری 50 کیلووات


Specification:

CHP unit type: GG 70
Engine type: MAN

Power data:

Electrical [kW]: 71
Thermal [kW]: 114
Gas input [kW Hi]: 204

Efficiency Rate:

Electrical [%]: 34.8
Thermal [%]: 55.9
Total [%]: 90.7
Power to heat ratio: 0.61

Servicing:

Service interval [hours of operation]: 1500
General overhaul [h]: 60000

Dimensions:

Length [mm]: 2400
Width [mm]: 900
Height [mm]: 1800

Operating weight [kg]: 2070
Noise level [dB(A) in 1m]: 63
