اسیلوسکوپ های دو کاناله و چهار کاناله


شکل دستگاه مشخصات مدل دستگاه

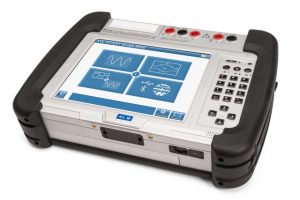

اسیلوسکوپ ۴ کاناله بسیار پیشرفته ویندروزی شرکت پارس رایزن

محصولات تعمیرگاهی خودرو شرکت پارس رایزن - نمایندگی AVL

 اسیلوسکوپ ۴ کاناله بسیار پیشرفته ویندوزی



  • Galvanically isolated inputs
  • Four differential oscilloscope measurement channels, each at 40 MS/s
  • Touchscreen-operated measurement unit with intuitive GUI
  • Active probe supply with colour guide
  • fully integrated infotainment test (Bluetooth, USB, Wi-Fi, video)
  • Windows® 7 Tablet PC
  • Voltage measurement up to 500 V AC/DC
  • Current measurement from 1 mA to 1800 A AC/DC
  • Resistance measurement from 0.1 Ω to 10 MΩ
  • Pressure measurement from -1 bar to 100 bar
  • Temperature measurement from -20°C to 200°C
  • Fully functional signal generator for voltages between -20 V and +40 V
  • Two integrated, high resolution pressure sensors (e.g. for cylinder
    synchronization on motorbikes)
  • guided measurement steps for faultless diagnostics.

    High End Set:
    Win 7 Tablet - Power supply with cable - USB cable - LAN cable - Video cable -
    2 x Cable URD red/black - Stimuli wire set - 2 x test probes red & black -
    2 x test probes red & black - Clamp I150 High End - Current clamp I1800 -
    Temperature sensor -20 ° to 200 ° C - Pressure sensor -1 bar to 100bar -
    2 x connection hoses for 2 internal low pressure sensors from -0.8 to 2 bar -
    Trigger clamp - KV Clip

Scope 8400

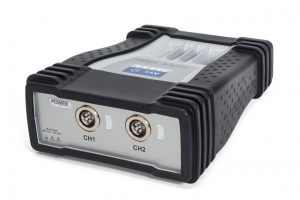

اسیلوسکوپ ۲ کاناله

محصولات تعمیرگاهی خودرو شرکت پارس رایزن - نمایندگی AVL

 اسیلوسکوپ ۲ کاناله با تجهیزات پایه



  • Galvanically isolated inputs
  • Two differential oscilloscope measurement channels, each at 40 MS/s
  • Active probe supply with colour guide
  • Voltage measurement up to 600 V AC/DC
  • Current measurement from 1 mA to 1800 A AC/DC
  • Resistance measurement from 0.1 Ω to 10 MΩ
  • Resolution: Scope 14 bit, digital multimeter 16 bit
  • Full measurement range for each channel, sampling rate

    Basic Set:
    AVL DiTEST Scope 1200 Module - Power supply with cable - USB cable -
    2 x cable URD - 2 x test probes red&black - 2 x crocodile clips red&black -
    Current clamp 600A

Scope 1200 Basis

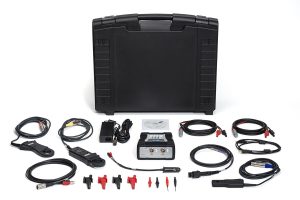

اسیلوسکوپ ۲ کاناله پیشرفته با تجهیزات کامل

محصولات تعمیرگاهی خودرو شرکت پارس رایزن - نمایندگی AVL

اسیلوسکوپ ۲ کاناله با تجهیزات استاندارد



  • Galvanically isolated inputs
  • Two differential oscilloscope measurement channels, each at 40 MS/s
  • Active probe supply with colour guide
  • Voltage measurement up to 600 V AC/DC
  • Current measurement from 1 mA to 1800 A AC/DC
  • Resistance measurement from 0.1 Ω to 10 MΩ
  • Resolution: Scope 14 bit, digital multimeter 16 bit
  • Full measurement range for each channel, sampling rate

    Standard Set:
    AVL DiTEST Scope 1200 Module - Power supply with cable - USB cable -
    2 x cable URD - 2 x test probes red&black - 2 x crocodile clips red&black -
    Current clamp 100A Standard - Current clamp 1800A

Scope 1200 High End

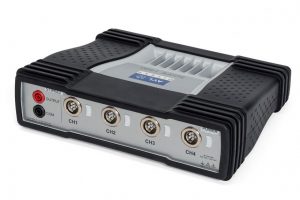

اسیلوسکوپ ۴ کاناله با تجهیزات استاندارد

محصولات تعمیرگاهی خودرو شرکت پارس رایزن - نمایندگی AVL

اسیلوسکوپ ۴ کاناله با تجهیزات استاندارد



  • Galvanically isolated inputs
  • Four differential oscilloscope measurement channels, each at 40 MS/s
  • Active probe supply with colour guide
  • Over 400 pre-defined settings
  • Voltage measurement up to 600 V AC/DC
  • Current measurement from 1 mA to 1800 A AC/DC
  • Resistance measurement from 0.1 Ω to 10 MΩ
  • SPI for synchronous serial data buses
  • Signal generator: 800 mA, -20 V to + 20 V, to 1 MS/s
  • resolution: Scope 14 bit, digital multimeter 16 bit
  • power supply through 14 V on-board system (cigarette lighter or car battery)
  • Full measurement range for each channel, sampling rate

    Standard Set:
    AVL DiTEST Scope 1400 Module - Power supply with cable - USB cable -
    Measurement line red&black 4MM - Cable URD Scope 10 - Probe red&black -
    Current clamp 1800A Scope 1000 - Test clamp red&black 4mm

Scope 1400 Basic

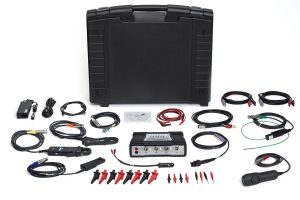

اسیلوسکوپ ۴ کاناله با تجهیزات کامل

محصولات تعمیرگاهی خودرو شرکت پارس رایزن - نمایندگی AVL

اسیلوسکوپ ۴ کاناله با تجهیزات کامل



  • Galvanically isolated inputs
  • Four differential oscilloscope measurement channels, each at 40 MS/s
  • Active probe supply with colour guide
  • Over 400 pre-defined settings
  • Voltage measurement up to 600 V AC/DC
  • Current measurement from 1 mA to 1800 A AC/DC
  • Resistance measurement from 0.1 Ω to 10 MΩ
  • SPI for synchronous serial data buses
  • Signal generator: 800 mA, -20 V to + 20 V, to 1 MS/s
  • resolution: Scope 14 bit, digital multimeter 16 bit
  • power supply through 14 V on-board system (cigarette lighter or car battery)
  • Full measurement range for each channel, sampling rate

    High End Set:
    AVL DiTEST Scope 1400 Module - Power supply with cable - USB cable -
    Cigarette lighter and vehicle battery supply - Temperature sensor -20 ° to 200 ° C -
    Pressure sensor -1 bar to 100bar - Trigger clamp - KV clip - 4 x cable URD -
    4 x test probes red&black - 4 x crocodile clips red&black - Stimuli wire set -
    Current clamp I1500 High End - Current clamp I1800

Scope 1400 High End
